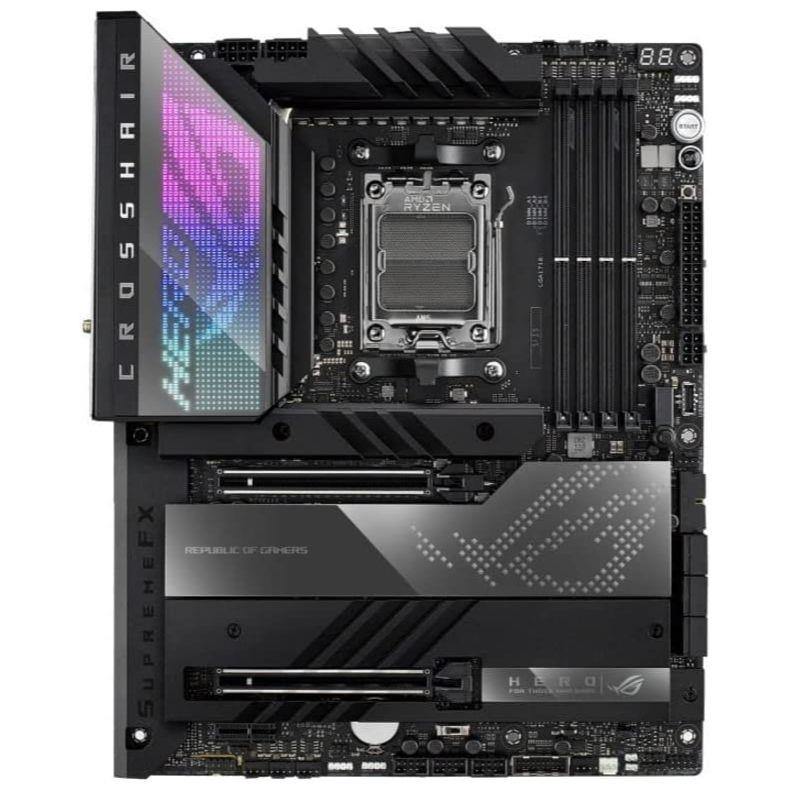

ROG CROSSHAIR X670E HERO
Unyielding power delivery and robust thermal management form the indelible tenets of its creed. Hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support, and Polymo lighting add potent layers of build personalization on top. And the finishing touches are added by exclusive utilities and overclocking controls that allow you to uniquely flex the performance of Ryzen 7000 Series processors. Define your AM5 build with the ROG Crosshair X670E Hero.
- Massive 18 + 2 teamed power solutions rated for 110A per stage
- Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
- 6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
- Two on-board M.2 slots and both x16 slots are PCIe Gen 5-ready
- Provides an extra mount and cooling for a full-size PCIe 5.0 M.2 SSD
- Faster-than-Gigabit WiFi that unlocks access to the low-interference 6 GHz band
- Polymo Lighting shines across the I/O shroud sporting a choice of customizable patterns
- Dual USB4 Type-C ports for up to 40 Gbps bidirectional bandwidth
Dynamic OC Switcher
Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher lets you use them both, dynamically engaging PBO or your preferred settings based on the CPU current or temperature.
Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize the base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
Teamed Power Architecture
Today's CPU architectures place incredible demands on the motherboard power design by transitioning from deep powersaving modes, going from lower power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
Memory
Comprehensive memory tuning options are the cornerstone of ROG motherboards. With the ROG Crosshair X670E Hero, you can extract all of the potential out of your DDR5 modules, regardless of if they're from an extreme-speed kit or an entry level set that would otherwise be locked.
PCIe 5.0
Fully embracing the new standard, the ROG Crosshair X670E Hero offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
Cooler by Design
1. VRM heatsinks and heatpipe
2. M.2 heatsinks
3. High-conductivity thermal pads
4. M.2 backplate
5. Chipset heatsink
Two USB4 Type-C Ports
Each USB4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.
SupremeFX
ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide exceptional recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec, and an integrated ESS ES9218 quad DAC capable of reaching -115dB THD+N for superior front-panel output. The combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track.
Grow your Gaming World with Aura Sync
Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
