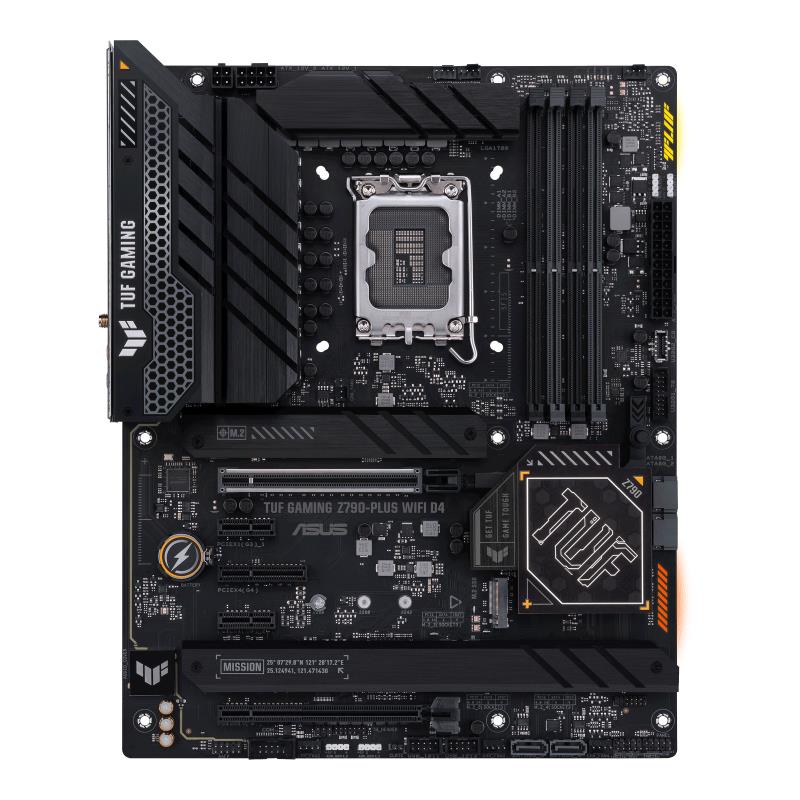

Asus Tuf Gaming Z790-Plus Wifi D4 Intel 12/13th Gen ATX Motherboard

TUF GAMING Z790-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features & proven durability.
  • 4 x DIMM, DDR4 5333(OC)
  • 16+1 DrMOS Power Stages (60A)
  • PCIe® 5.0 for Graphics Cards
  • USB 3.2 Gen 2x2 Type-C®
Form Factor: ATX
Product Code: TUF GAMING Z790-PLUS WIFI D4
Brand: Asus
Warranty: 1 - Year Local
Availability: In Stock
Rs. 108,999

TUF GAMING Z790-PLUS WIFI D4

ASUS TUF GAMING Z790-PLUS WIFI is an Intel Z790 (LGA 1700) ATX Gaming motherboard with 16+1 DrMOS power stages, PCIe 5.0, DDR4 RAM support, four M.2 slots, USB 3.2 Gen 2x2 Type-C, and Aura Sync RGB lighting.

  • Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors
  • Enhanced power solution: 16+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
  • Next-gen connectivity: PCIe 5.0, USB 3.2 Gen2x2 Type-C, front USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support
  • Made for online gaming: WiFi 6, Intel 2.5 Gb Ethernet and TUF LANGuard
  • Two-Way AI Noise Cancelation: Reduces background noise for crystal-clear communication in games or video conferences
  • Comprehensive cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
  • AI Cooling II: Balances thermals and acoustics of any build with a single click
  • Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support

DrMOS Power Stages

16+1 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.

Six-Layer PCB Design

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

DRAM Overclocking Performance

Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

PCIe 4.0 Support

The four PCIe 4.0 M.2 slots support up to two 22110 devices and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to four PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.

Cooler By Design

The TUF GAMING Z790-PLUS WIFI D4 is armed with an enlarged VRM heatsink, while three M.2 slots and the PCH feature heatsinks that provide the perfect balance of mass and surface area for heat dissipation.

Connectivity

The TUF-GAMING Z790-PLUS WIFI D4 reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports include three Type-C connections and Thunderbolt 4, which expands compatibility and bandwidth even further.

1. USB 3.2 Gen 2x2 Type-C

2. PCIe 5.0

3. Thunderbolt(USB4) Support

4. Front USB3.2 Gen 2 Type-C

WiFi 6

The Intel WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps*. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

SafeSlot & SafeDIMM

SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot―all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.

PCIe Q-Release

A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
